Marking engraving stations

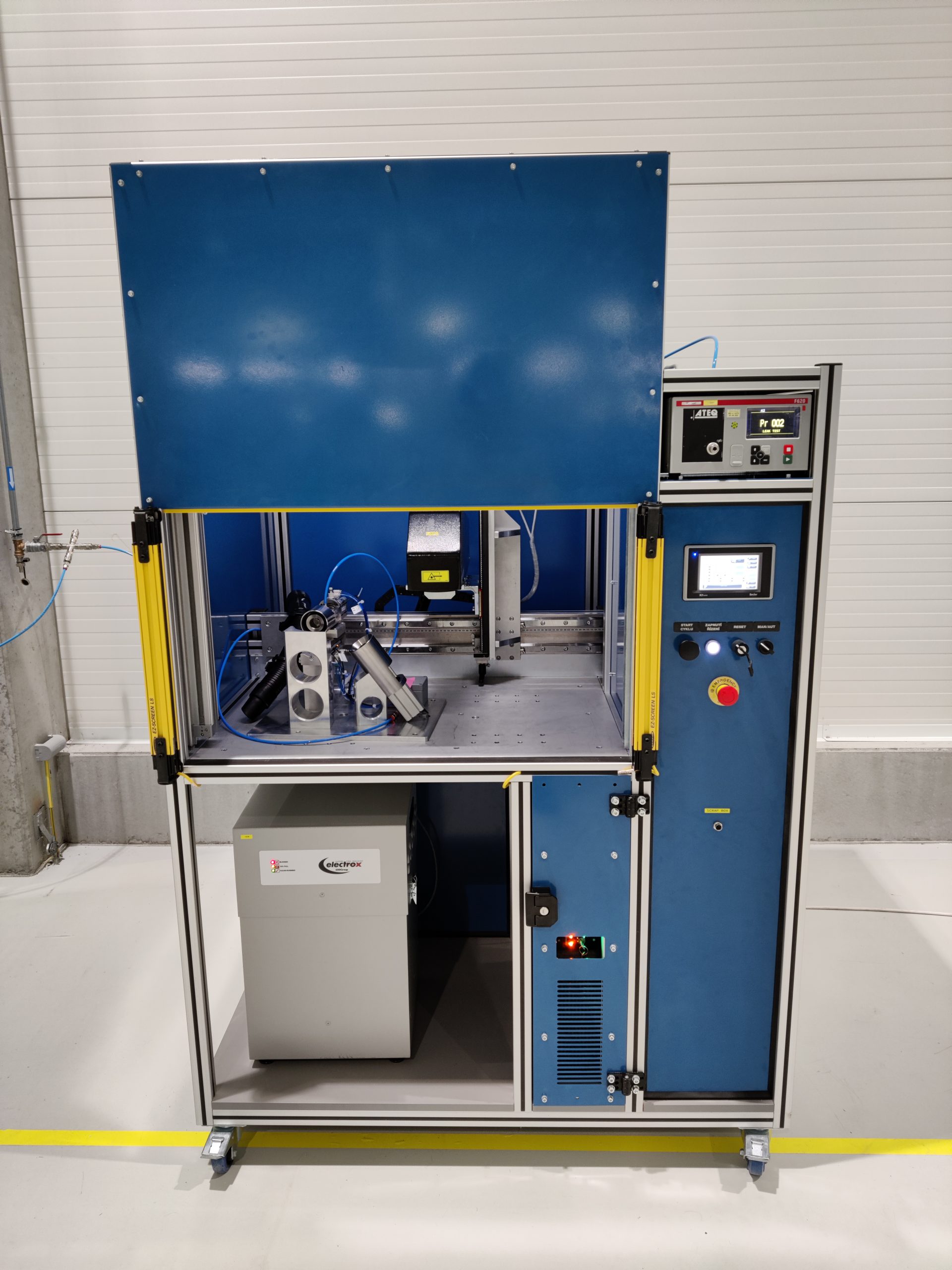

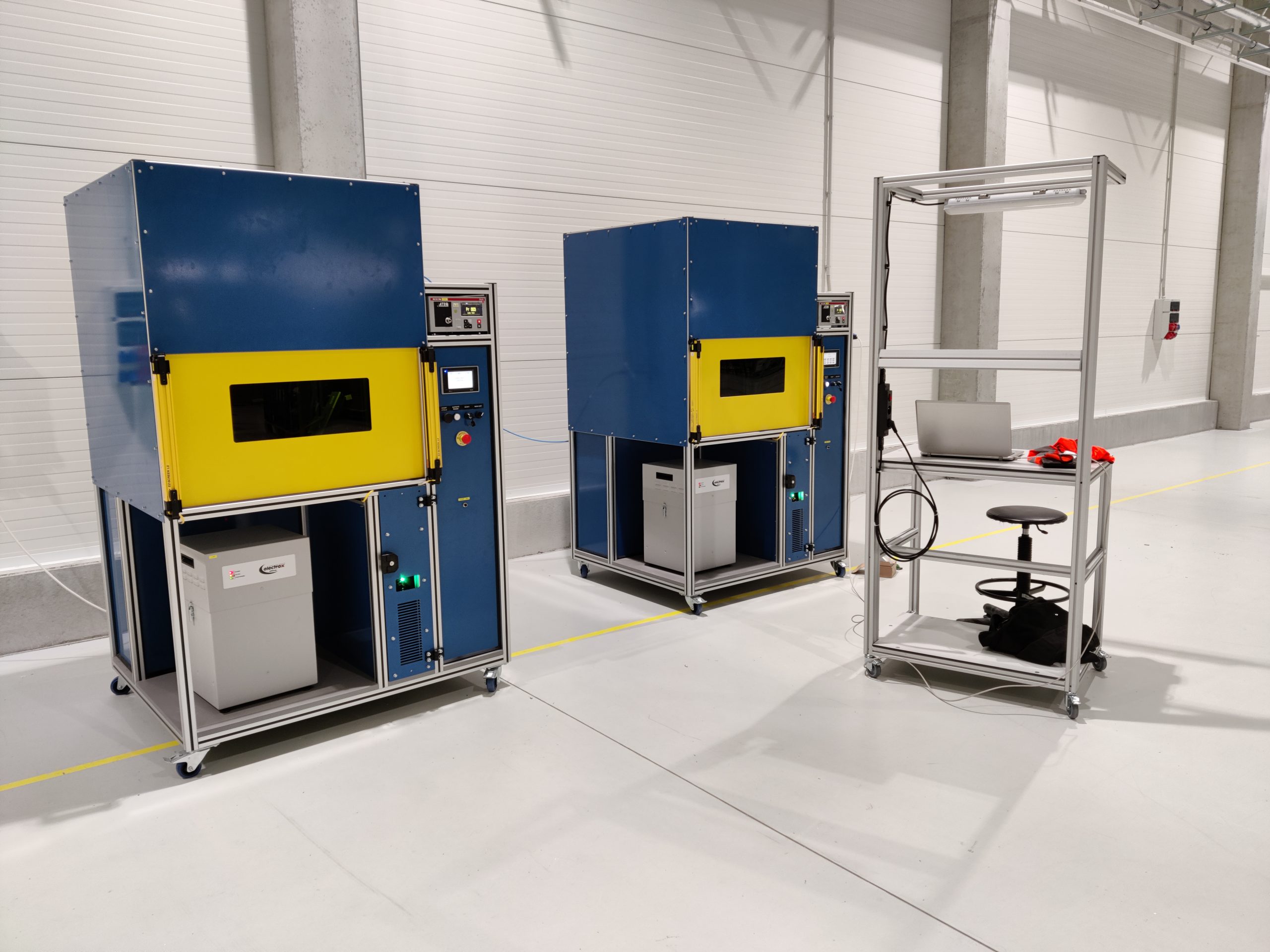

Two marking stations used to engrave high-pressure stainless steel oil tubes used in the automotive industry.

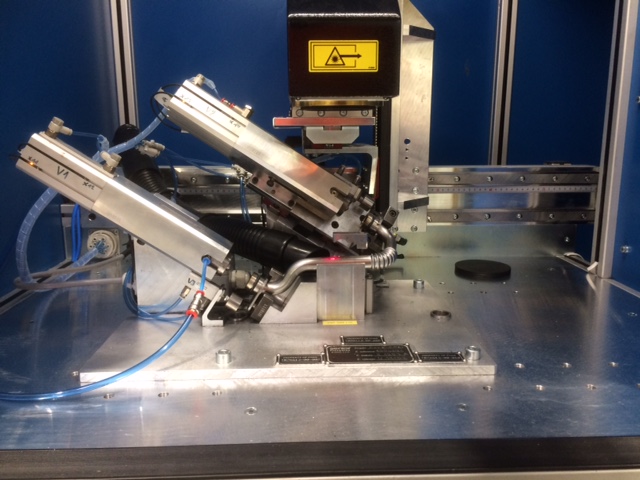

Workpieces are inserted into the jig and engraved after cycle start confirmation, while required focal distance is automatically maintained based on the selected program on HMI.

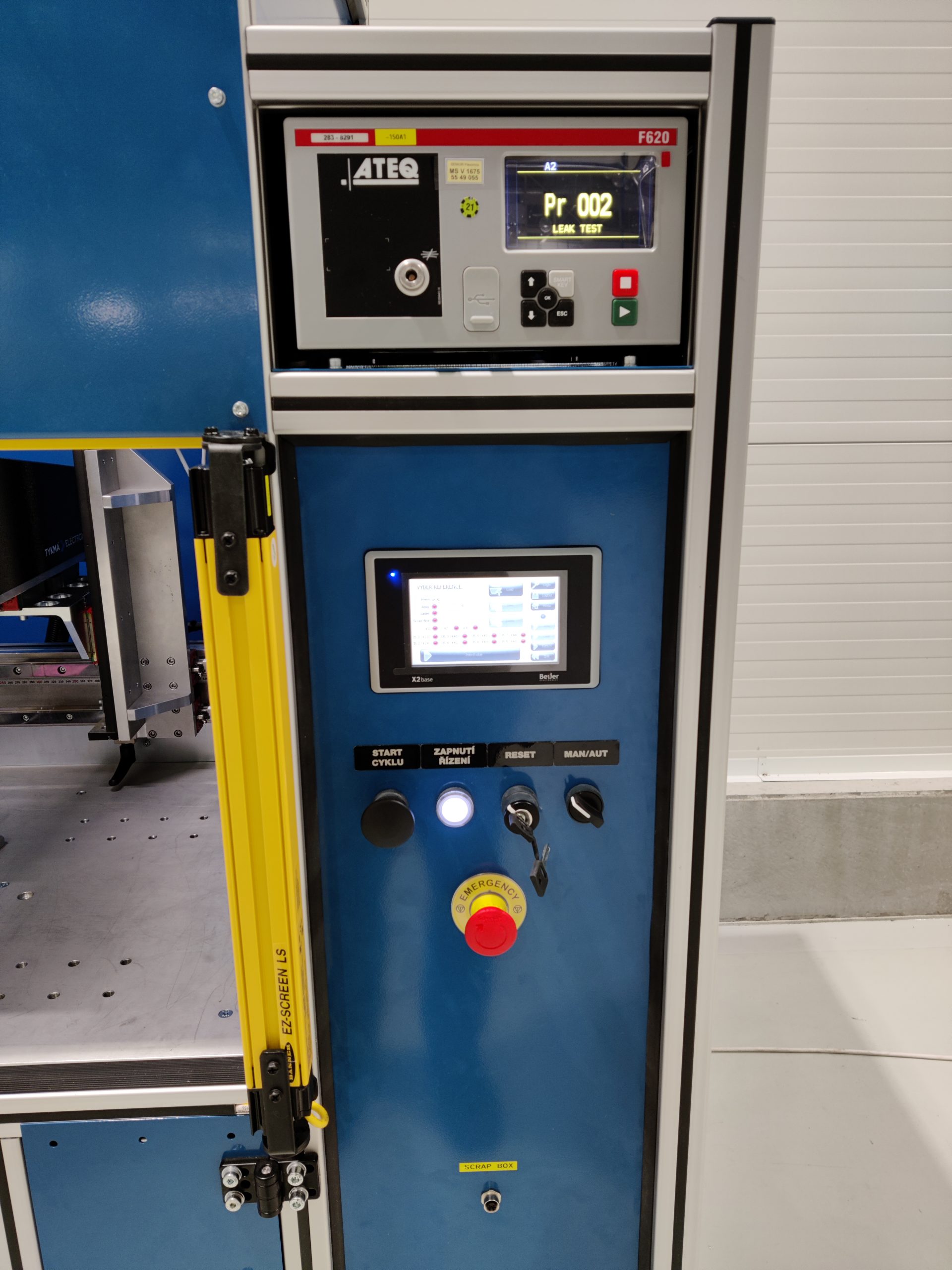

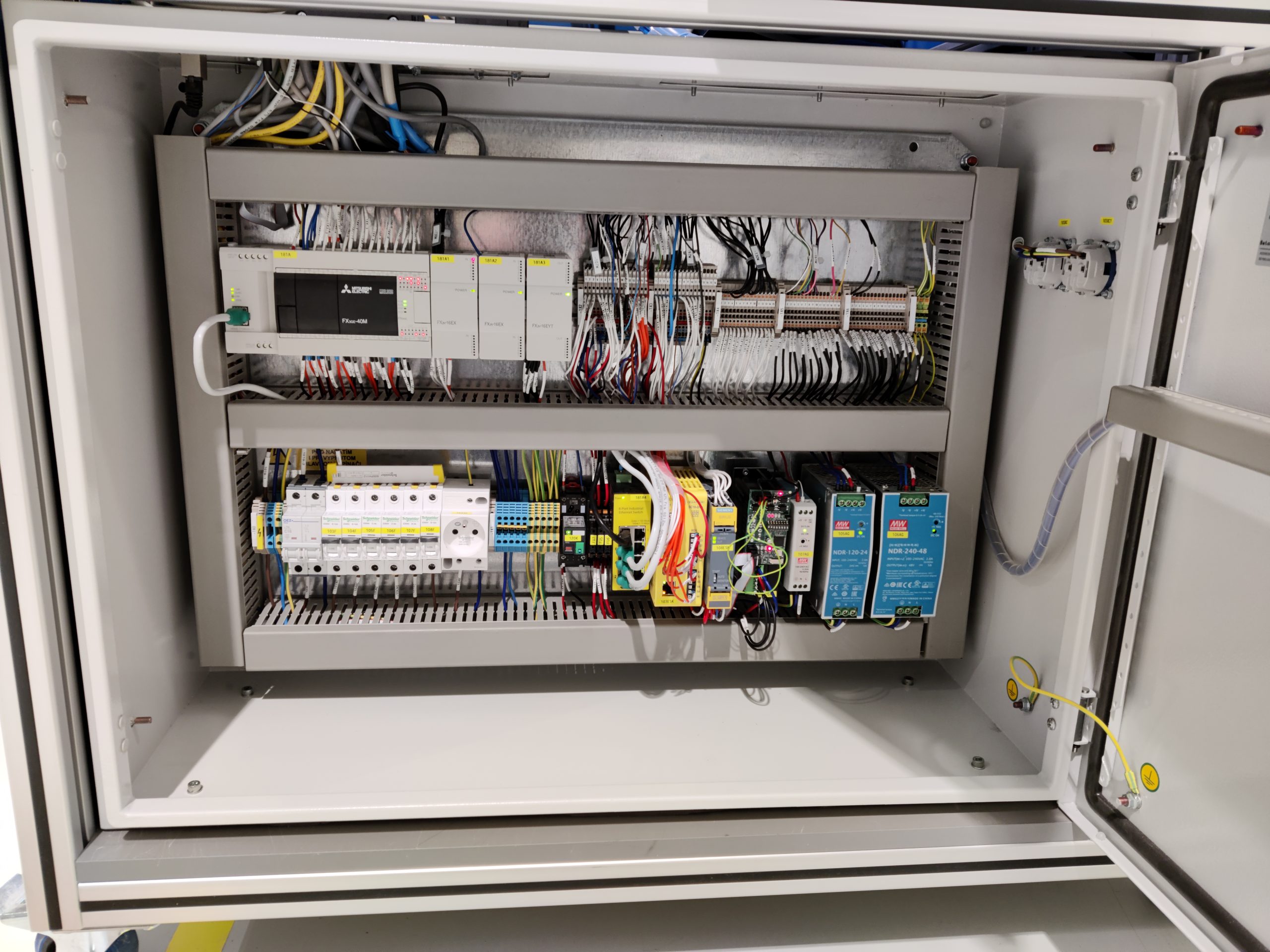

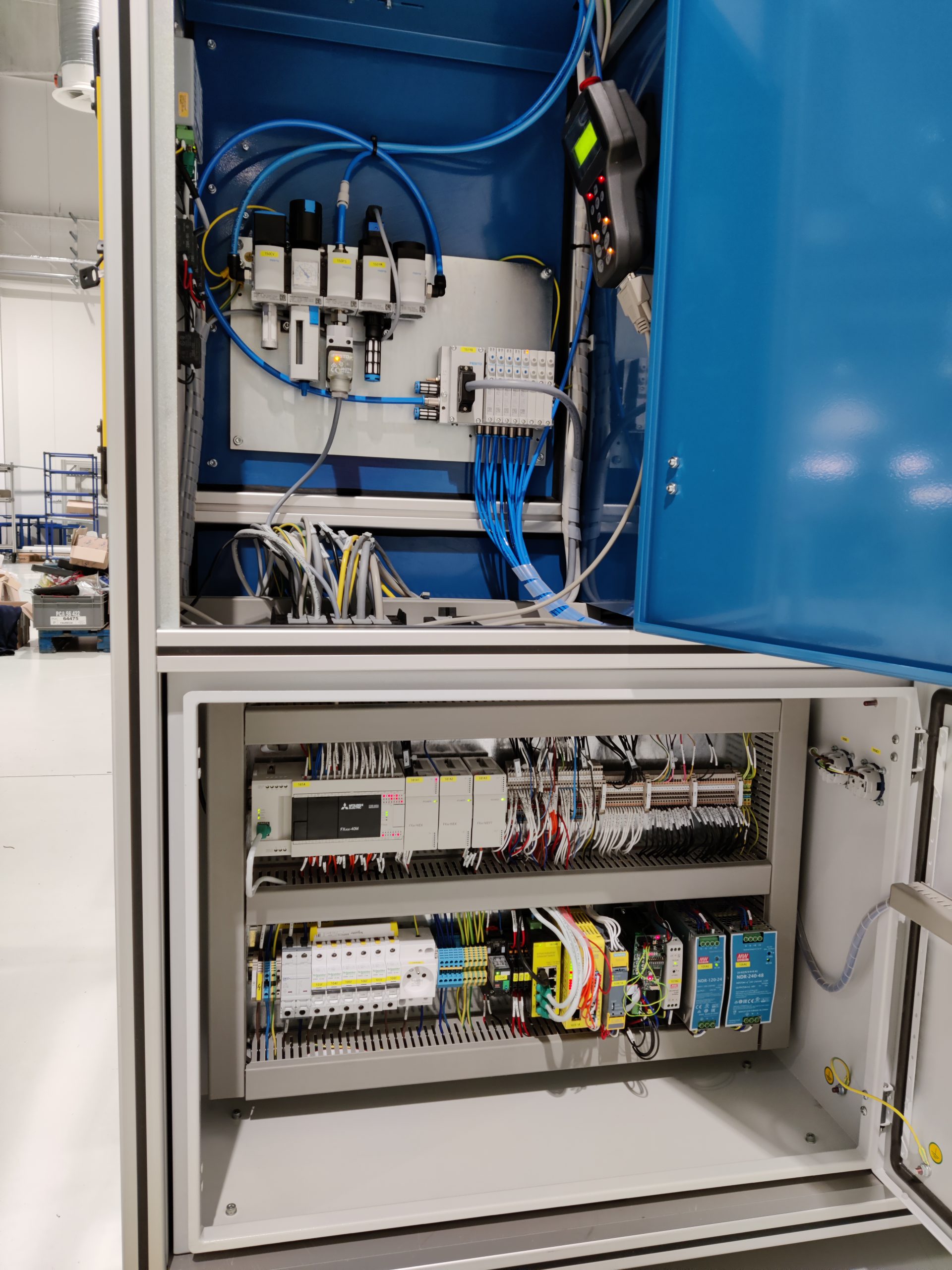

PLC used in this application is Mitsubishi, HMI is Beijer, laser is Tykma Electrox II Scorpion 20W and safety is Banner.

Mainly used communication protocols between devices are TCP/IP and Modbus RTU.
